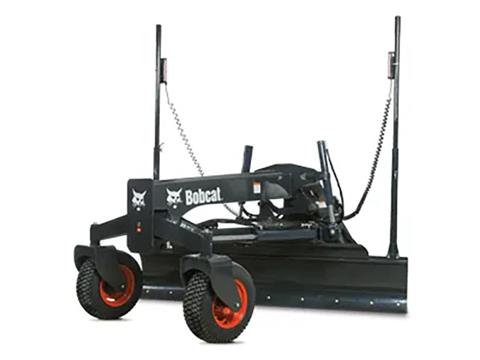

2022 Bobcat 108 in. Grader

Compatible Models

• Compact Track Loaders - T740, T770, T86 and T870
• Skid-Steer Loaders - S740, S770, S850 and S86

Features

• Max. Lift - 173 mm
• Grader control valve - 3 spool electric solenoid control

Features & Benefits

• DIRT SHIELD: Mounted over the moldboard on larger models, the dirt shield keeps pushed materials moving forward.
• FLOTATION TIRES: The tires provide excellent flotation to keep the grader moving smoothly over the work area.
• SIDE SHIFT: Manual side shifts on smaller models move the blade up to 12 inches to the left or right. The hydraulic side shift on larger models provides up to 13 inches to the left or right, making it easier to grade next to buildings, poles, and other obstacles.
• OSCILLATING BOLSTER: The bolster oscillates to minimize the effect of uneven ground, delivering consistent grading performance.
• PROPORTIONAL HYDRAULIC VALVE: With three speeds at which the moldboard can be raised or lowered, the grader’s operation can be more closely matched to the speed of the loader. The longer the operator presses the button that controls the valve, the faster the moldboard moves. It also provides finer control with automatic grading solutions.
• BOLT-ON, REVERSIBLE CUTTING EDGE: When the edge wears out it can be flipped over to provide a fresh cutting edge.

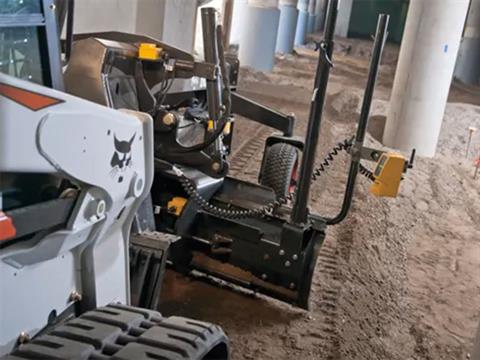

• AUTOMATIC CONTROL SYSTEMS: Automatic Control Systems increase accuracy and productivity. The blade moves up or down automatically to keep the base material exactly on-grade. Grader is 3D laser-ready. Laser control and sonic/cross slope systems are available.
